CAN Message Types

The CAN and CAN FD messages are defined using the CAN_MESSAGE_BUS and CAN_FD_MESSAGE_BUS Simulink bus datatypes, which contain individual signals for the different properties of the message. For CAN, a non-bus datatype is available to support the "SAE J1939" and "XCP over CAN" Simulink blocks. With the exception of these two use cases, using the non-bus datatype is not recommended.

The CAN_MESSAGE_BUS and the CAN_FD_MESSAGE_BUS datatypes contain the following signals:

To create a bus object in the base workspace for the Simulink CAN and CAN FD message bus, refer to the MathWorks VNT documentation for canMessageBusType and canFDMessageBusType.

CAN and CAN FD Message Bus Signals

(* only used with CAN FD messages.)

CAN Read Modes

The CAN Read block can be used in one of two different read modes: Single Read from Buffer (FIFO) and Specify by IDs. This defines how the CAN messages are read from the bus.

Single Read from Buffer (FIFO)

With Single Read from Buffer (FIFO), all CAN messages that are available on the specified CAN channel are stored in a message queue, which is implemented as a First-In-First-Out (FIFO) buffer. In this mode, the CAN Read block has direct access to this buffer and if there are messages in the message queue, the Data present outport will be 1. With every execution of the CAN Read block, one single message is read from the queue and output on the CAN Msg output port.

To ensure that the complete receive buffer is processed and emptied in one sample step, the CAN Read block must be executed multiple times until the Data present outport indicates that there are no messages remaining in the queue. This can be achieved with a do-while subsystem construction, which will result in multiple iterations of the complete subsystem. Consequently, every CAN message that has been read from the bus can be processed individually and the complete buffer is cleared in every sample step.

The maximum number of iterations is set in the While Iterator block in the Simulink/Ports & Subsystem library. It can be set to unlimited iterations with (-1) but it is best practice to limit this to 500 iterations.

Inside the subsystem, multiple CAN or CAN FD unpack blocks can be directly connected to the CAN Msg output port. The matching IDs are then unpacked into the signals of the message and can be routed out of the subsystem. If multiple messages with the same Message ID are received, only the most recent messages will appear in the do-while subsystem output.

The sample time of the subsystem is defined by Simulink inheritance rules: If the subsystem does not have input ports, it will inherit the fundamental sample time of the model. Alternatively, the sample time of the subsystem can be controlled by adding an input port, with a connected signal that has a defined sample time. The sample time must be chosen depending on the bus load in order to avoid buffer overflow during one sample step.

A limitation of this read mode is that there can only be one CAN Read block per channel configured with the Single Read from Buffer (FIFO) mode. Therefore, all CAN messages that are received on this channel, must be processed inside this subsystem.

Top Level View

Inside the While Iterator Subsystem

The Sample Time input port defines the rate at which the subsystem is executed. If the Sample Time is not defined, the subsystem will run on the base rate.

Specify by IDs

If the application only requires specific CAN IDs and the most recent data of a CAN message, the Specify by IDs read mode can be used. In this mode, no While Iterator block is required and the number of CAN Read blocks per CAN channel is not limited. When reading the same ID with different CAN Read blocks, execution with different sample times is supported and all the blocks will read the most recent CAN message.

Initialization and Termination CAN Messages

The CAN Setup driver block allows users to define individual CAN messages to be sent during initialization and termination of the real-time application. This functionality can be used to initialize or terminate other CAN nodes (such as data loggers) on the network.

The initialization and termination CAN messages must be defined with structure arrays that require the following specific field names:

Initialization and Termination Structure

In MATLAB, the following script can be used to create the initialization and termination structure. The initCAN and termCAN variables must be specified in the CAN setup block for the Initialization Structures Array and Termination Structures Array fields.

% create Initialization structure
initCAN.Channel     = 1;
initCAN.Protocol    = 'CAN-FD';         % 'CAN' or 'CAN-FD'
initCAN.BRS         = 1;                % 0 or 1
initCAN.Type        = 'Standard';       % 'Standard' or 'Extended'
initCAN.Identifier  = 99;               % ID must be double
initCAN.Data        = [8 8 8 8 8 8 8 8];
initCAN.Pause       = 0.05;

% create Termination structure
termCAN.Channel     = 1;
termCAN.Protocol    = 'CAN-FD';         % 'CAN' or 'CAN-FD'
termCAN.BRS         = 1;                % 0 or 1
termCAN.Type        = 'Extended';       % 'Standard' or 'Extended'
termCAN.Identifier  = double(0xFFF);    % ID must be double
termCAN.Data        = [1 1 1 1 1 1 1 1];
termCAN.Pause       = 0.05;

Baud Rate Configuration

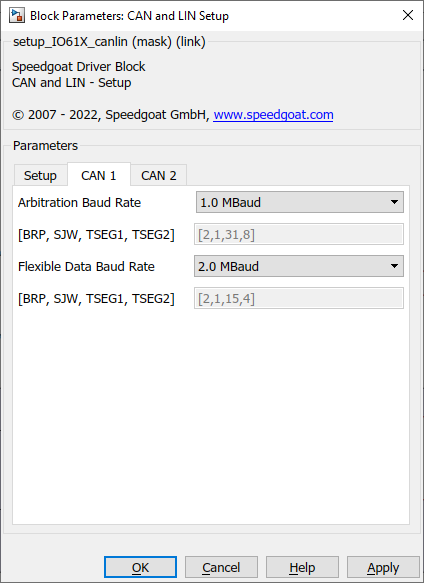

The IO61X I/O modules offer both pre-defined Baud Rates and custom configurations.

The CAN driver uses a CAN Controller, which monitors the serial bus line and performs sampling and adjustment of the sample point by synchronizing with the start-bit edge and resynchronizing with the following edges.

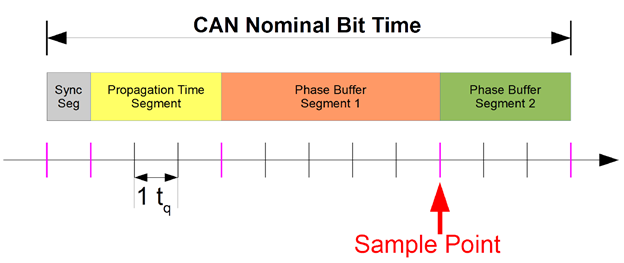

According to the CAN specification^[2], the nominal bit time is split into four segments:

The basic time unit of the CAN Nominal Bit Time is time quantum (t_q). The length of one time quantum is determined by the clock rate of the CAN controller and a Baud Rate Prescaler. While the synchronization segment has a fixed length, the other three sections are programmable.

Baud Rate parameters:

The following formulas are used for calculating the CAN bit rate:

t_q = BRP / CAN_Clk

t_BS1 = t_q * (TSEG1 + 1)

t_BS2 = t_q * (TSEG2 + 1)

NominalBitTime = t_q + t_BS1 + t_BS2 = t_q * (1 + TSEG1 + TSEG2)

CAN Baud rate = 1/NominalBitTime

Depending on the cable length and machine setup, the Sample-Point can be rather late, for example, 87.5% (recommended value from CiA).

Remote frames

	Note
	For reading Remote Frames with an IO61X channel works solely with the Read block parameter Read Mode set to Single Read from Buffer (FIFO)

	Note
	When using Remote Frames with the IO61X modules, alongside with the Rtr bit being set, the DLC has to set to zero. This applies to both CAN Pack and CAN Unpack blocks.

Usage of LIN Pack and Unpack Blocks

In order to support the Simulink LIN Pack and Unpack blocks, the DLC parameter for the respective LIN Write and Read block must always be set to 8. Unused data fields are filled with zero.

When reading LIN messages in a triggered subsystem, as recommended, the output of the Enable block must be connected to the Msg Updated input of the LIN Unpack block.

To successfully load a LIN Descriptor File (.ldf), the following requirements must be met:

The following functions are supported by the LIN Pack and Unpack blocks:
