IO423 Usage Notes
IO423 Usage Notes — Usage information about the
I/O module
Connection methods
This section describes the different connection methods and the digital input
circuit for the IO423.

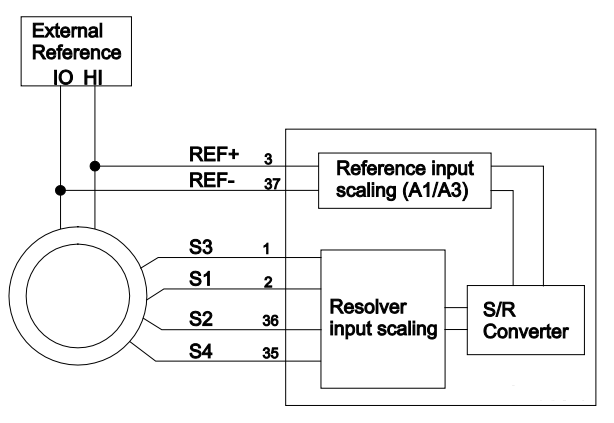

Resolver with external reference (SCA-A1-XX and
SCA-A3-XX)

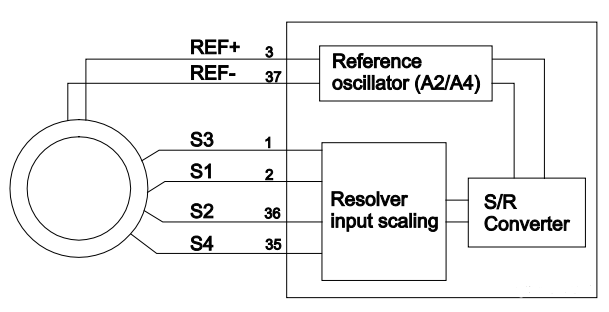

Resolver with internal reference (SCA-A2-XX and
SCA-A4-XX)

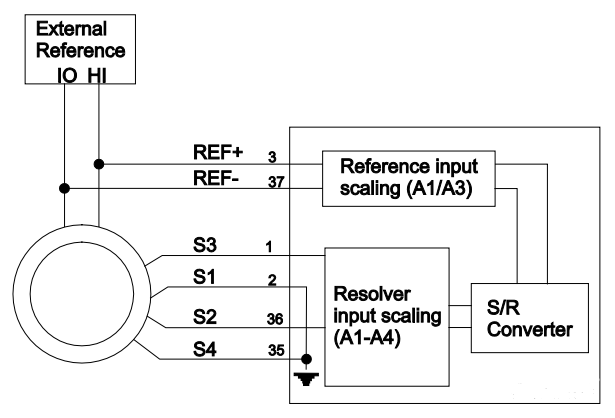

Single ended resolver with external reference (SCA-A1-XX and
SCA-A3-XX)

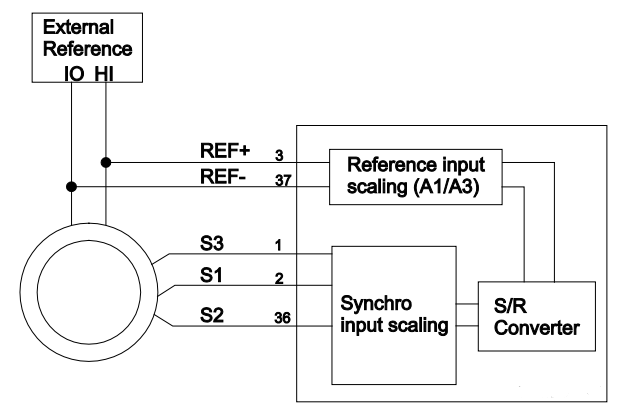

Synchro with external reference (SCA-A1-XX and
SCA-A3-XX)
