IO723 Pin Mapping
IO723 Pin Mapping — Reference information about
the I/O module connector

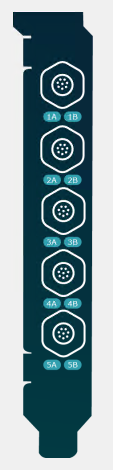

Front Plate
The functionality assigned to each connector depends on the RBS configuration and
the installed plugins. Please check your setup in the FL3X Config software for more
details.
Splitter Cables
Various splitter cables are available for the supported protocols. Detailed
information about each cable can be found in the respective installation folder of
the FL3X config software.
8-Pin Male M9 Binder to 2x 9-Pin Female D-Sub
Splitter cable for CAN with two D-sub connectors: one for each channel.
8-Pin Male M9 Binder to 2x 9-Pin Female D-Sub
Splitter cable for 100/1000Base-T1 with two D-sub connectors: one for each
channel.
