IO92X, IO970-IO973 Pin Mapping

IO92X, IO970-IO973 Pin Mapping — Reference information about the I/O module connector

This section contains the pin mappings for the IO92x and IO970-IO973 modules.

The pin mappings of the high density resistor card connectors depend on the bit-resolution and the channel count.

PCI I/O Modules	cPCI I/O Modules	Bit Resolution	Channels
IO921-8/10	IO922-8/10	8-Bit	10
IO921-8/18	IO922-8/18	8-Bit	18
IO921-12/05	IO922-12/05	12-Bit	5
IO921-12/10	IO922-12/10	12-Bit	10
IO921-16/05	IO922-16/05	16-Bit	5
IO921-16/10	IO922-16/10	16-Bit	10
	IO922-16/10-C	16-Bit	10
IO921-24/03	IO922-24/03	24-Bit	3
IO921-24/06	IO922-24/06	24-Bit	6

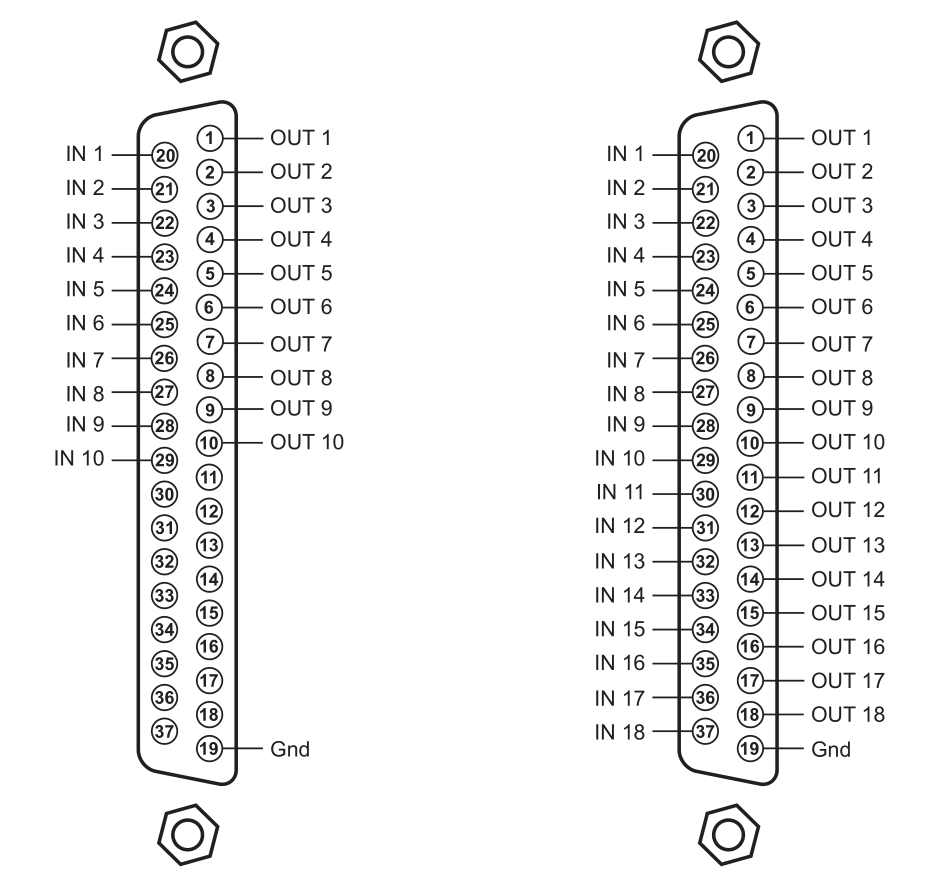

Modules with 8-bit resolution:

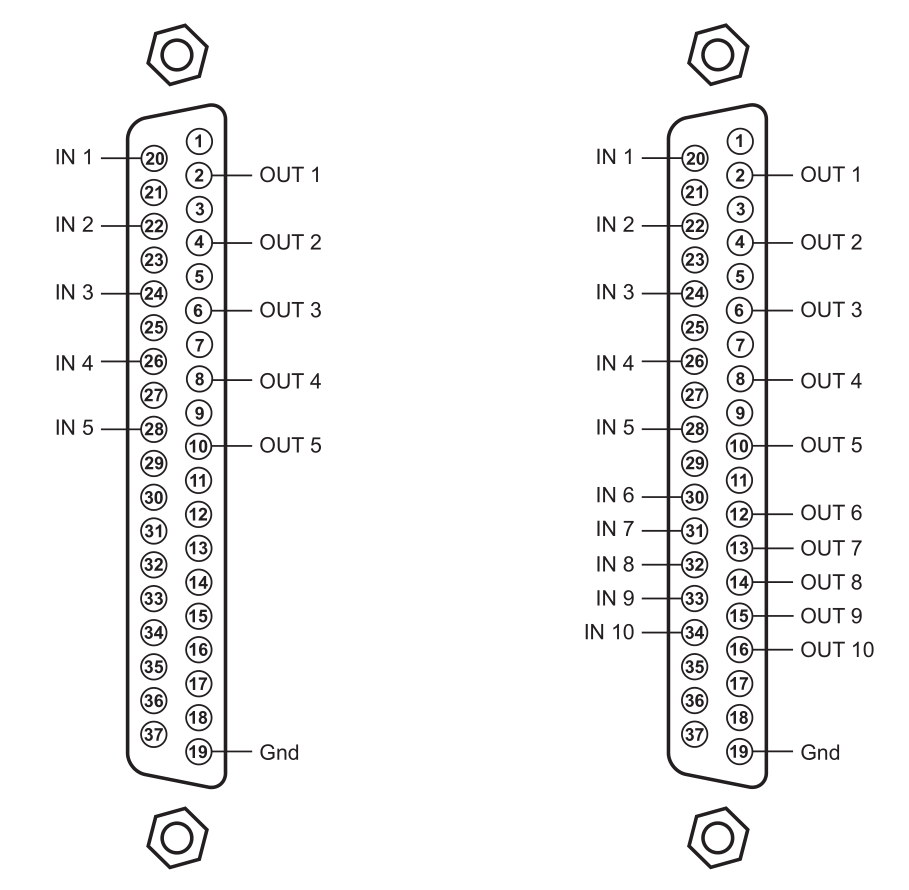

Modules with 12-bit or 16-bit resolution and 5 or 10 channels:

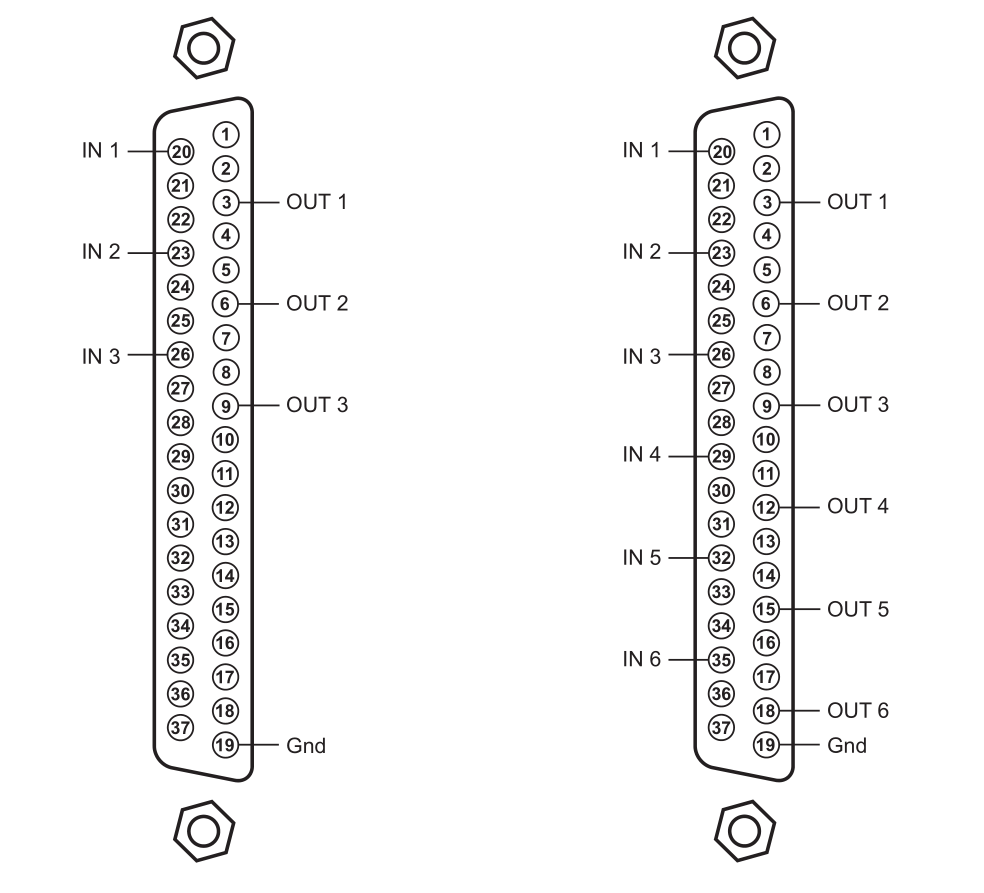

Modules with 24-bit resolution:

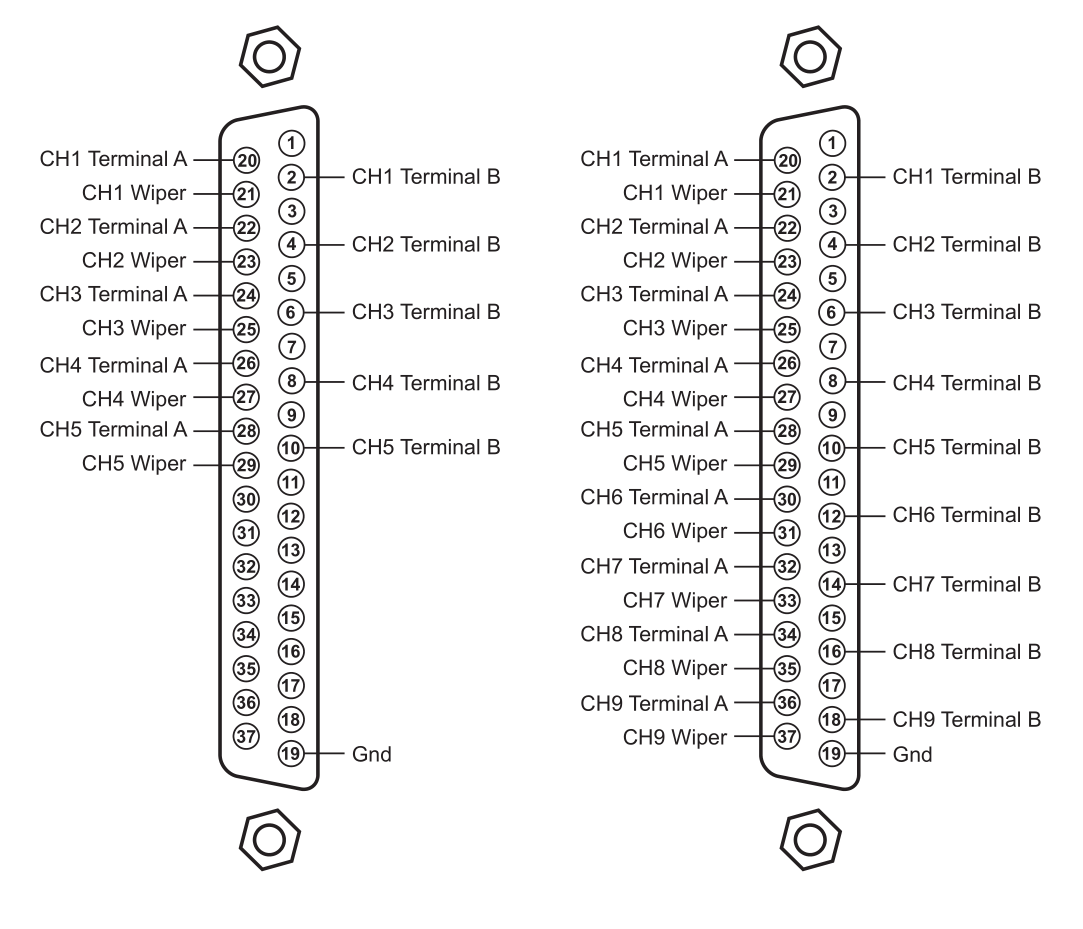

The pin mappings of the potentiometer card connectors depend on the channel count.

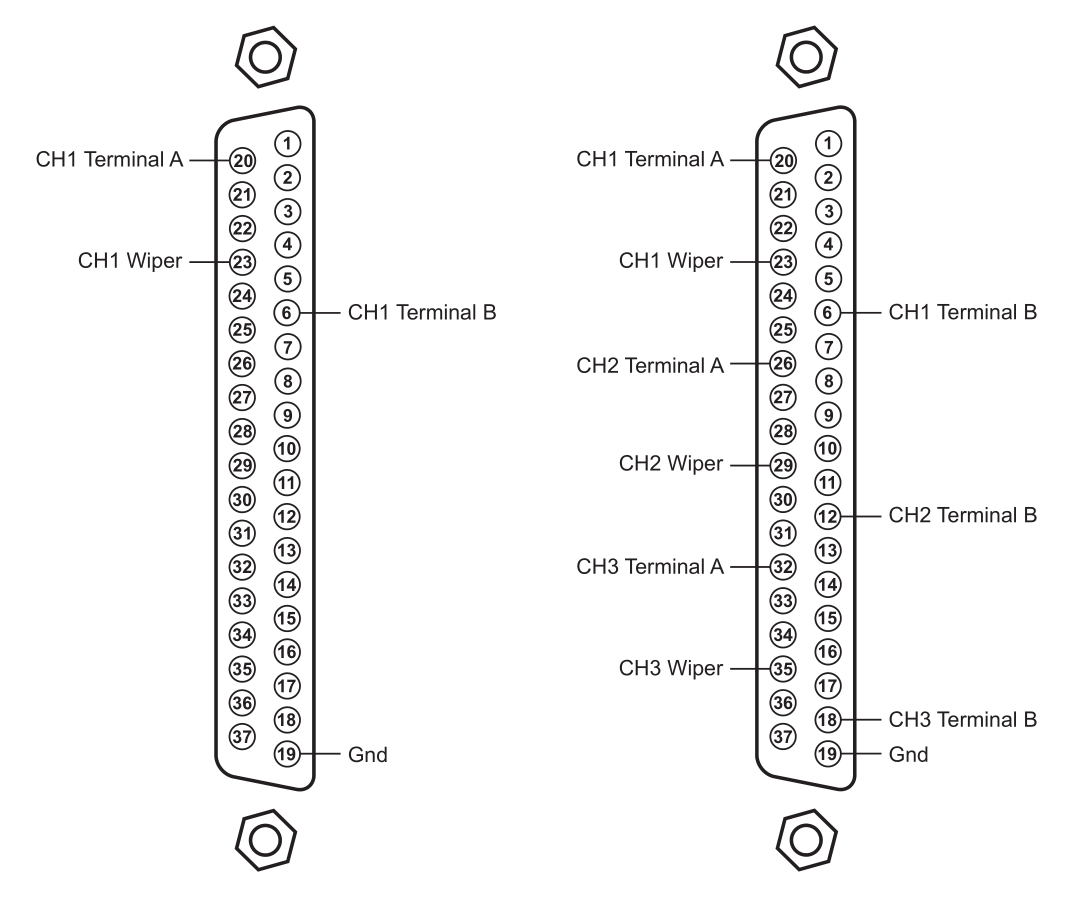

Modules with 1 or 3 channels:

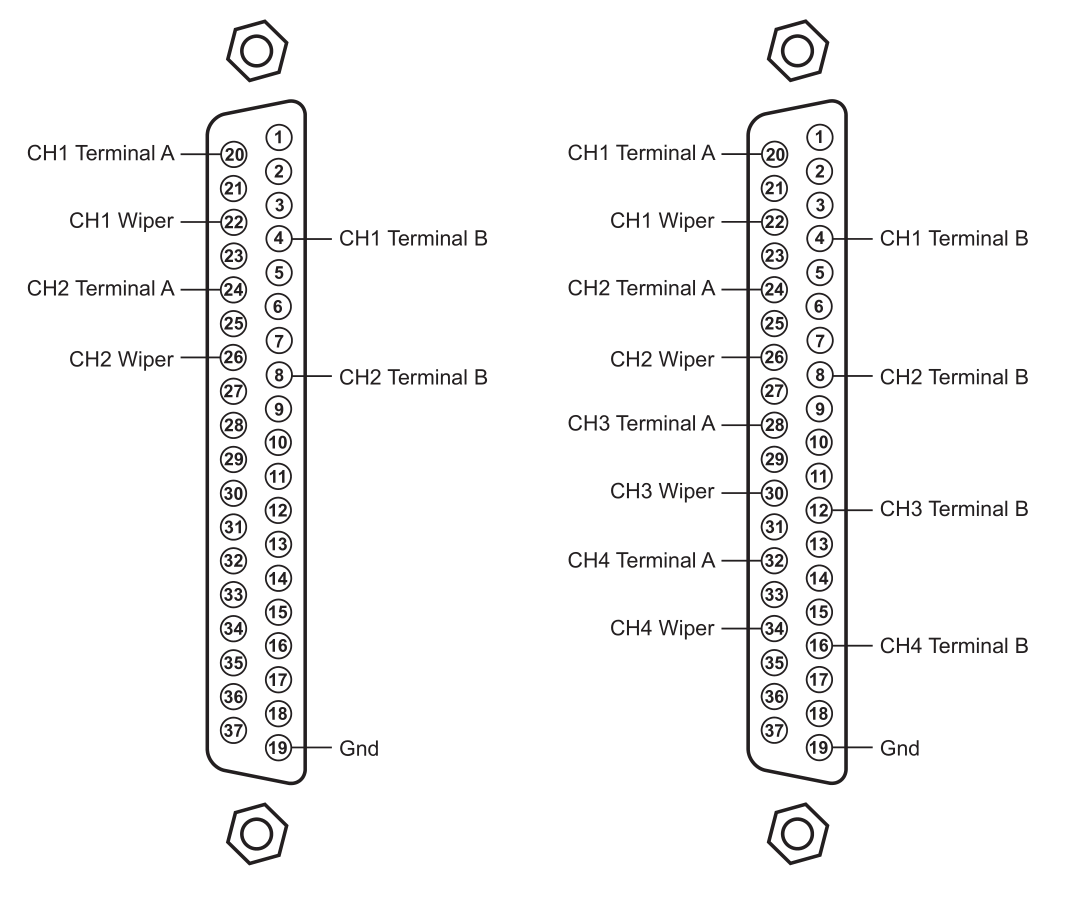

Modules with 2 or 4 channels:

Modules with 5 or 9 channels:

PCI I/O Modules	cPCI I/O Modules	Bit Resolution	Channels

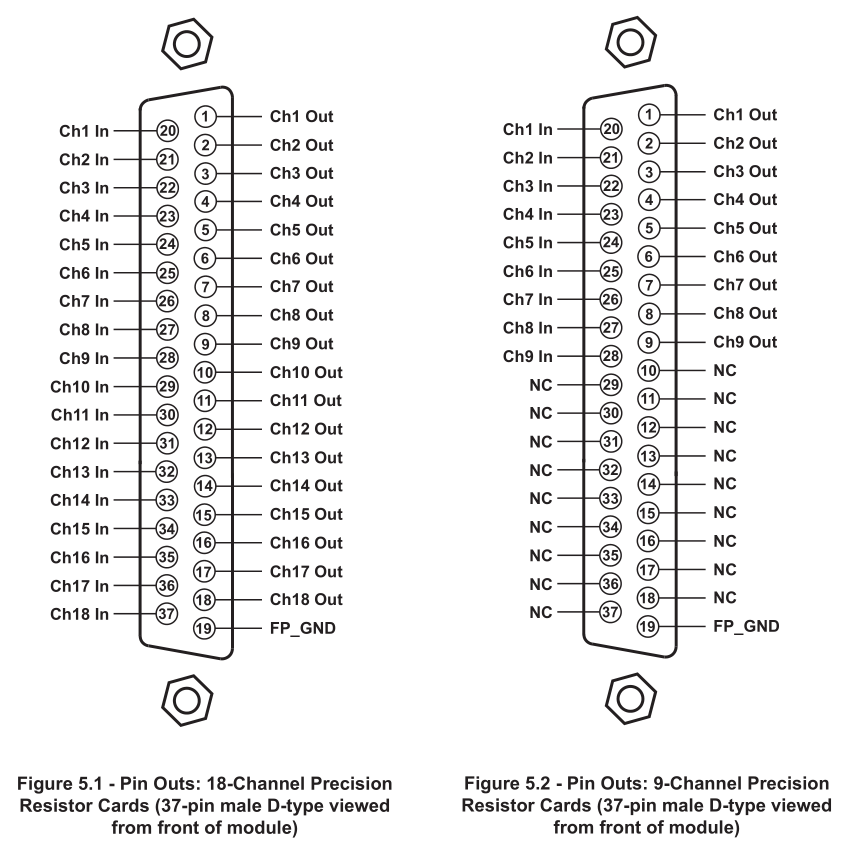

IO925-0125-1-18	IO926-0125-1-18	18	Figure 5.1
IO925-0250-1-18	IO926-0250-1-18
IO925-0500-1-18	IO926-0500-1-18
IO927-1000-1-18	IO928-1000-1-18
	IO926-18
IO927-2000-1-18	IO928-2000-1-18

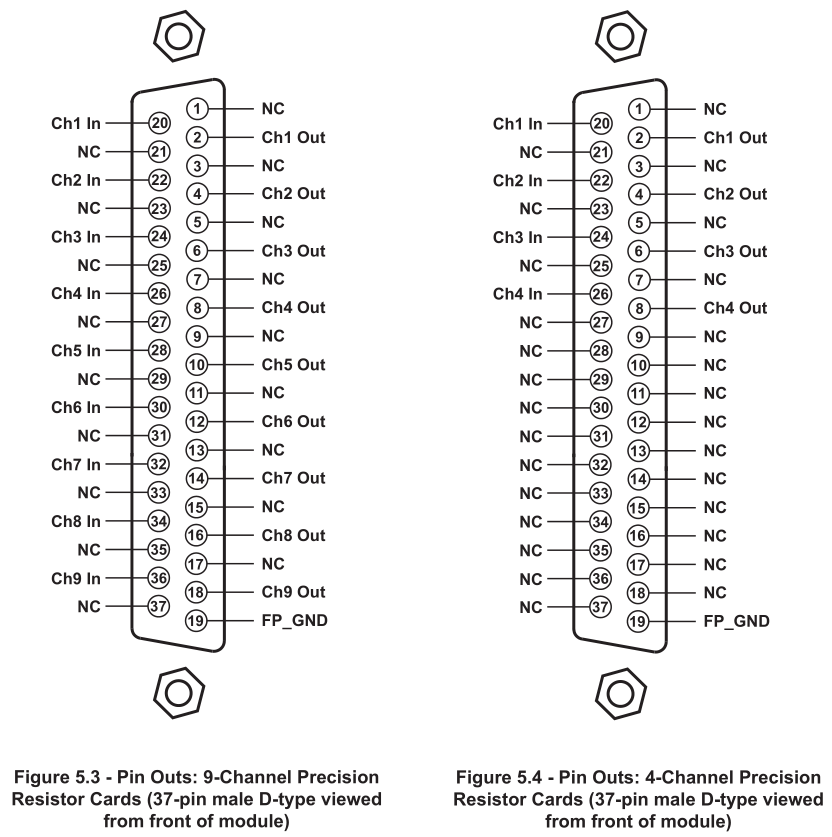

IO925-0125-2-09	IO926-0125-2-09	9	Figure 5.3
IO925-0250-2-09	IO926-0250-2-09
IO925-0500-2-09	IO926-0500-2-09
IO927-1000-2-09	IO928-1000-2-09
IO927-2000-2-09	IO928-2000-2-09
IO925-0125-3-09	IO926-0125-3-09
IO925-0250-3-09	IO926-0250-3-09
IO925-9	IO926-9
IO925-0500-3-09	IO926-0500-3-09
IO927-1000-3-09	IO928-1000-3-09
IO927-2000-3-09	IO928-2000-3-09

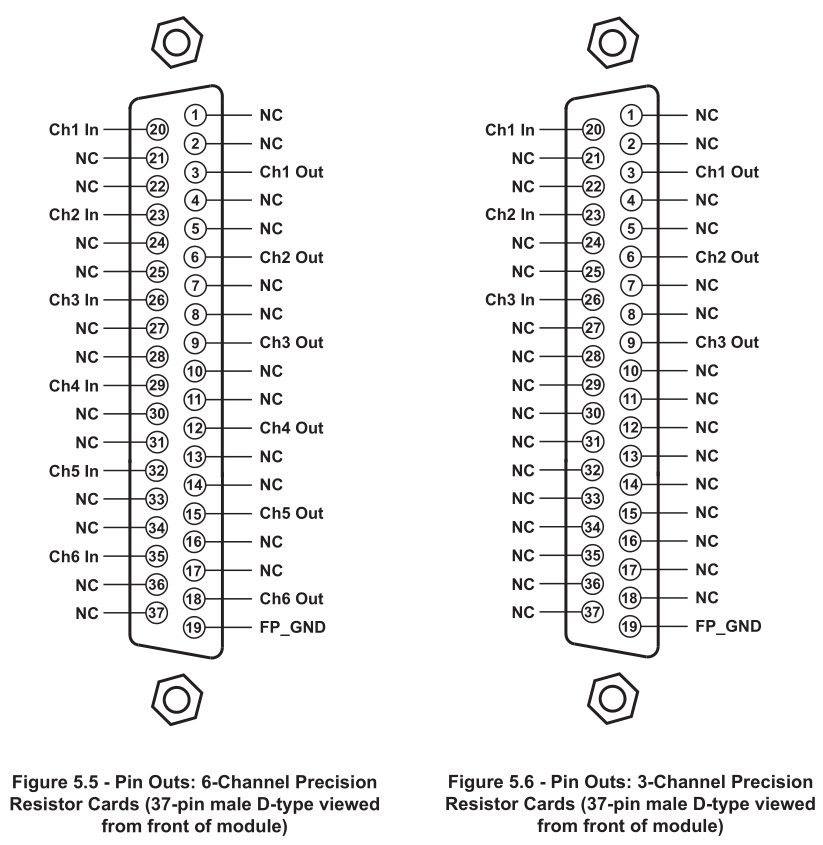

IO925-0125-4-06	IO926-0125-4-06	6	Figure 5.5
IO925-0250-4-06	IO926-0250-4-06
IO925-0500-4-06	IO926-0500-4-06
IO927-1000-4-06	IO928-1000-4-06
IO927-2000-4-06	IO928-2000-4-06
IO925-6
IO925-0125-5-06	IO926-0125-5-06
IO925-0125-1-09	IO926-0125-1-09	9	Figure 5.2
IO925-0250-1-09	IO926-0250-1-09
IO925-0500-1-09	IO926-0500-1-09
IO927-1000-1-09	IO928-1000-1-09
IO927-2000-1-09	IO928-2000-1-09
IO925-0125-2-04	IO926-0125-2-04	4	Figure 5.4
IO925-0250-2-04	IO926-0250-2-04
IO925-0500-2-04	IO926-0500-2-04
IO927-1000-2-04	IO928-1000-2-04
IO927-2000-2-04	IO928-2000-2-04
IO925-0125-3-04	IO926-0125-3-04
IO925-0250-3-04	IO926-0250-3-04
IO925-0500-3-04	IO926-0500-3-04
IO927-1000-3-04	IO928-1000-3-04
IO927-2000-3-04	IO928-2000-3-04
IO925-0125-4-03	IO926-0125-4-03	3	Figure 5.6
IO925-0250-4-03	IO926-0250-4-03
IO925-0500-4-03	IO926-0500-4-03
IO927-1000-4-03	IO928-1000-4-03
IO927-2000-4-03	IO928-2000-4-03
IO925-0125-5-03	IO926-0125-5-03

PCI I/O Modules	cPCI I/O Modules	Channels	Resistance
IO970-PT100-6	IO971-PT100-6	6	90Ω to 250Ω
-	IO971-PT100-16-ext	16	40Ω to 900Ω
IO970-PT100-18	IO971-PT100-18	18	90Ω to 250Ω
IO970-PT1000-6	IO971-PT1000-6	6	900Ω to 2500Ω
IO970-PT1000-18	IO971-PT1000-18	18	900Ω to 2500Ω

RTD Modules with 15-Pin Connectors

Pin	Signal Channels 1-6	Signal Channels 7-12	Signal Channels 13-18
1	Ground	Ground	Ground
2	NC	NC	NC
3	Channel 6 input	Channel 12 input	Channel 18 input
4	Channel 5 input	Channel 11 input	Channel 17 input
5	Channel 4 input	Channel 10 input	Channel 16 input
6	Channel 3 input	Channel 9 input	Channel 15 input
7	Channel 2 input	Channel 8 input	Channel 14 input
8	Channel 1 input	Channel 7 input	Channel 13 input
9	Ext Voltage	Ext Voltage	Ext Voltage
10	Channel 6 output	Channel 12 output	Channel 18 output
11	Channel 5 output	Channel 11 output	Channel 17 output
12	Channel 4 output	Channel 10 output	Channel 16 output
13	Channel 3 output	Channel 9 output	Channel 15 output
14	Channel 2 output	Channel 8 output	Channel 14 output
15	Channel 1 output	Channel 7 output	Channel 13 output

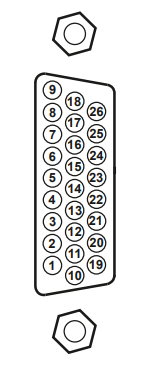

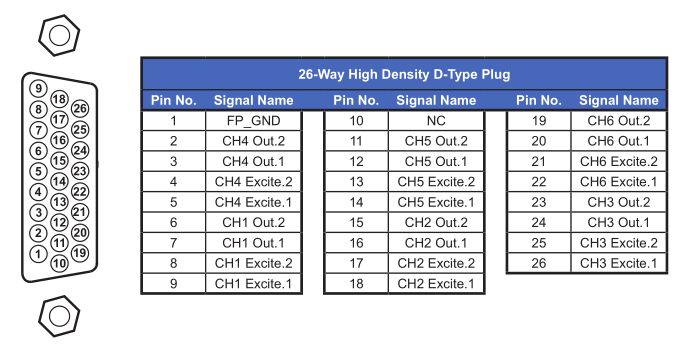

RTD Modules with 26-Pin Connectors

Pin	Signal Channels 1-8	Signal Channels 9-16	Signal Channels 17-24
1	NC	NC	NC
2	Channel 8 input	Channel 16 input	Channel 24 input
3	Channel 7 input	Channel 15 input	Channel 23 input
4	Channel 6 input	Channel 14 input	Channel 22 input
5	Channel 5 input	Channel 13 input	Channel 21 input
6	Channel 4 input	Channel 12 input	Channel 20 input
7	Channel 3 input	Channel 11 input	Channel 19 input
8	Channel 2 input	Channel 10 input	Channel 18 input
9	Channel 1 input	Channel 9 input	Channel 17 input
10	NC	NC	NC
11	Channel 8 output	Channel 16 output	Channel 24 output
12	Channel 7 output	Channel 15 output	Channel 23 output
13	Channel 6 output	Channel 14 output	Channel 22 output
14	Channel 5 output	Channel 13 output	Channel 21 output
15	Channel 4 output	Channel 12 output	Channel 20 output
16	Channel 3 output	Channel 11 output	Channel 19 output
17	Channel 2 output	Channel 10 output	Channel 18 output
18	Channel 1 output	Channel 9 output	Channel 17 output
19	Ground	Ground	Ground
20	NC	NC	NC
21	NC	NC	NC
22	NC	NC	NC
23	NC	NC	NC
24	NC	NC	NC
25	NC	NC	NC
26	Ext Voltage	Ext Voltage	Ext Voltage

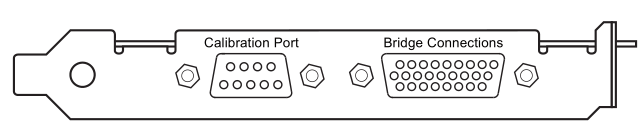

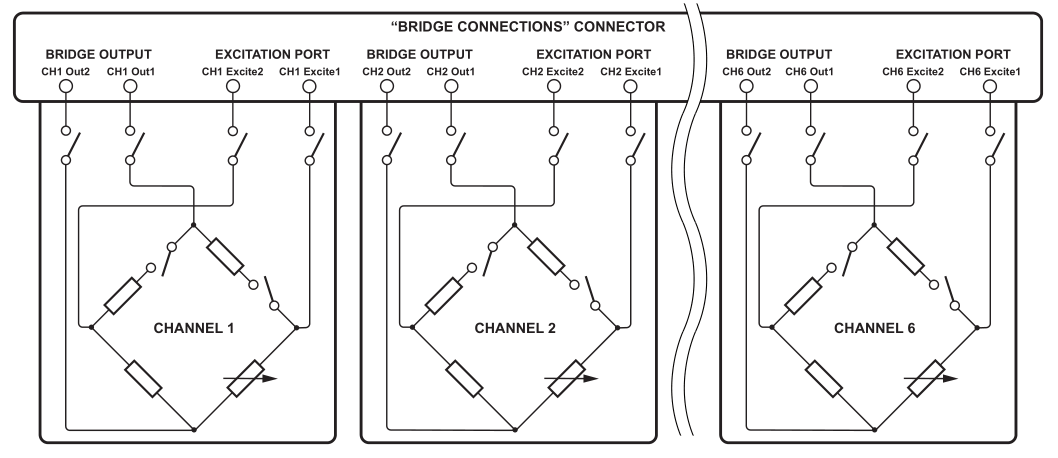

The switches shown in the picture above are always closed, as soon as the model is downloaded to the target machine.

The calibration port is not supported by the current speedgoat driver.
