IO94X Pin Mapping

IO94X Pin Mapping — Reference information about the I/O module connector

Description

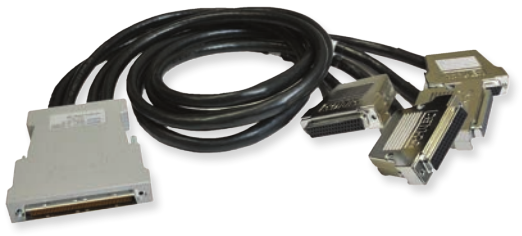

This section contains example pin mappings for the Speedgoat IO94x modules.

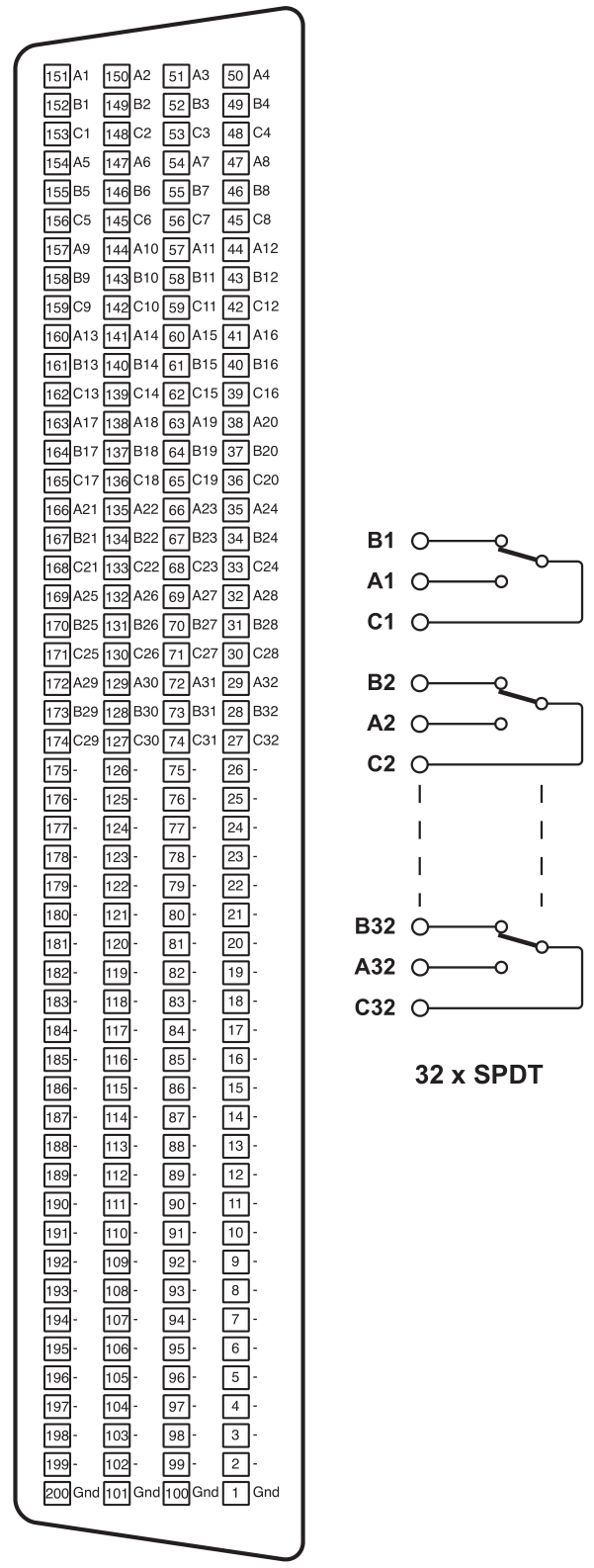

IO941-SPDT-32

Reed Relay Module IO941-SPDT-32 (32-channel, single pole double throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

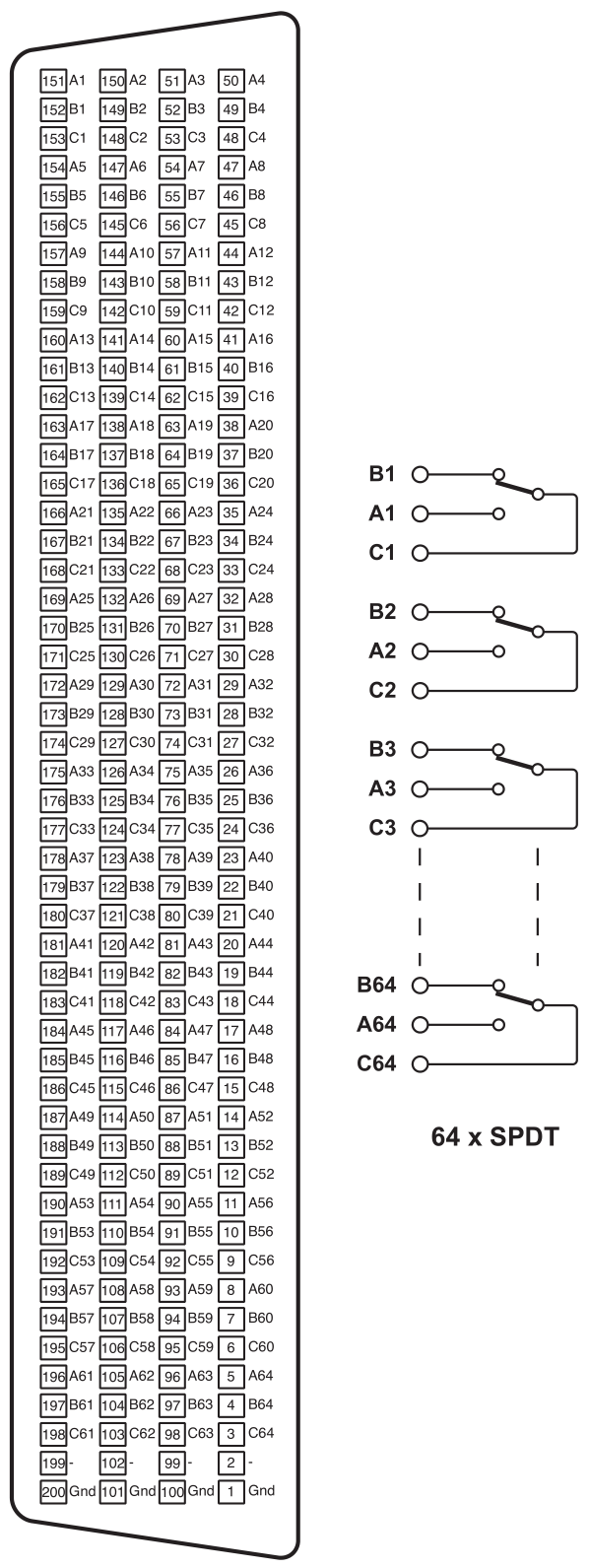

IO941-SPDT-64

Reed Relay Module IO941-SPDT-64 (64-channel, single pole double throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

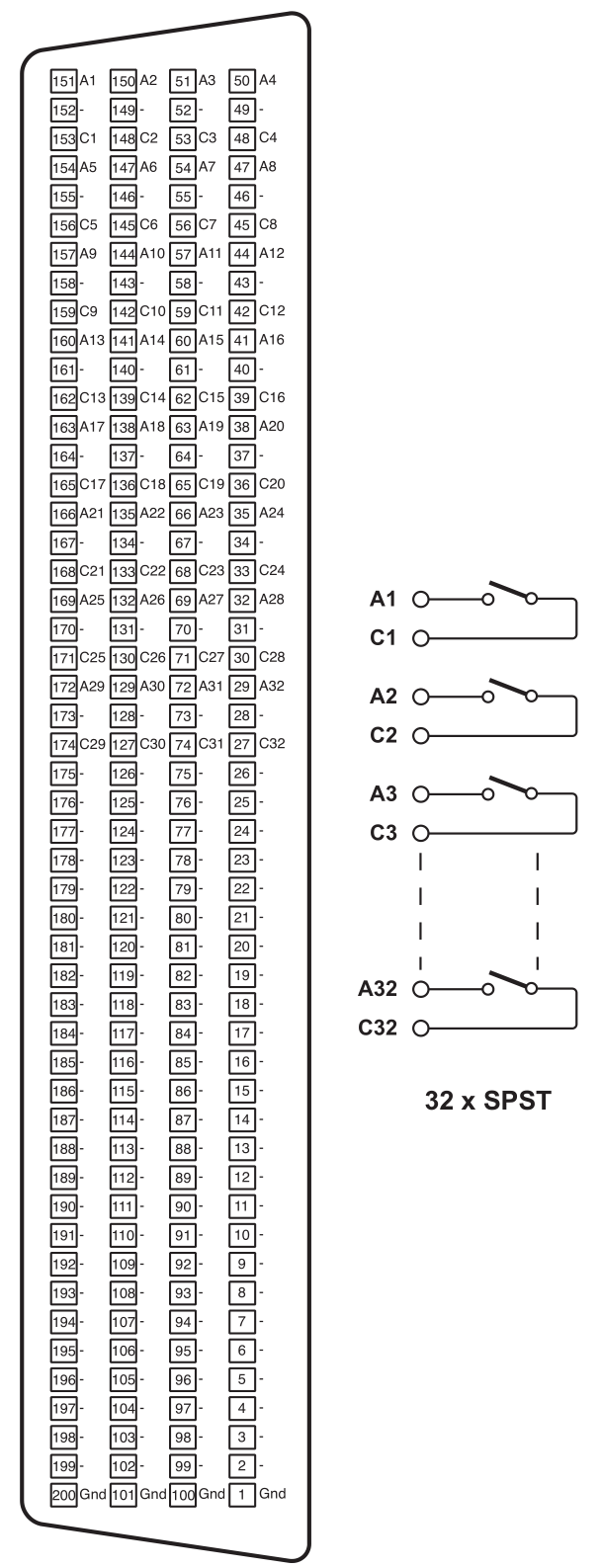

IO941-SPST-32

Reed Relay Module IO941-SPST-32 (32-channel, single pole single throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

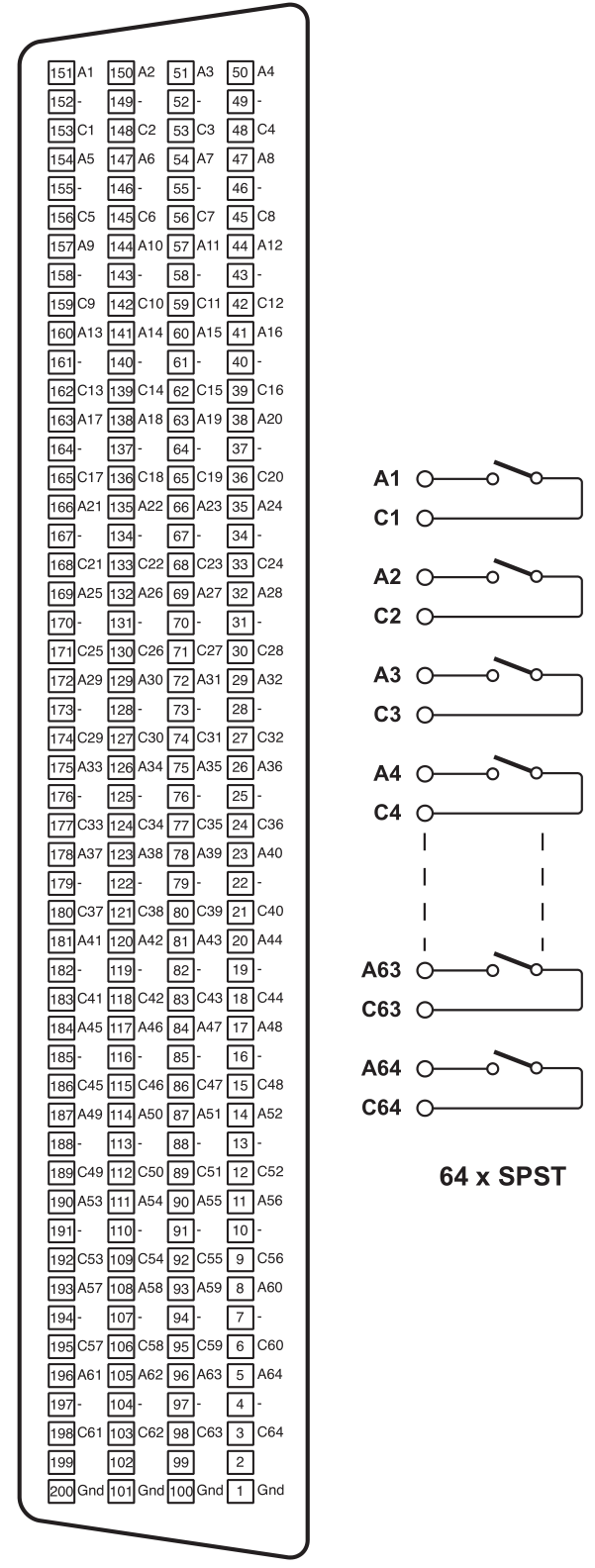

IO941-SPST-64

Reed Relay Module IO941-SPST-64 (64-channel, single pole single throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

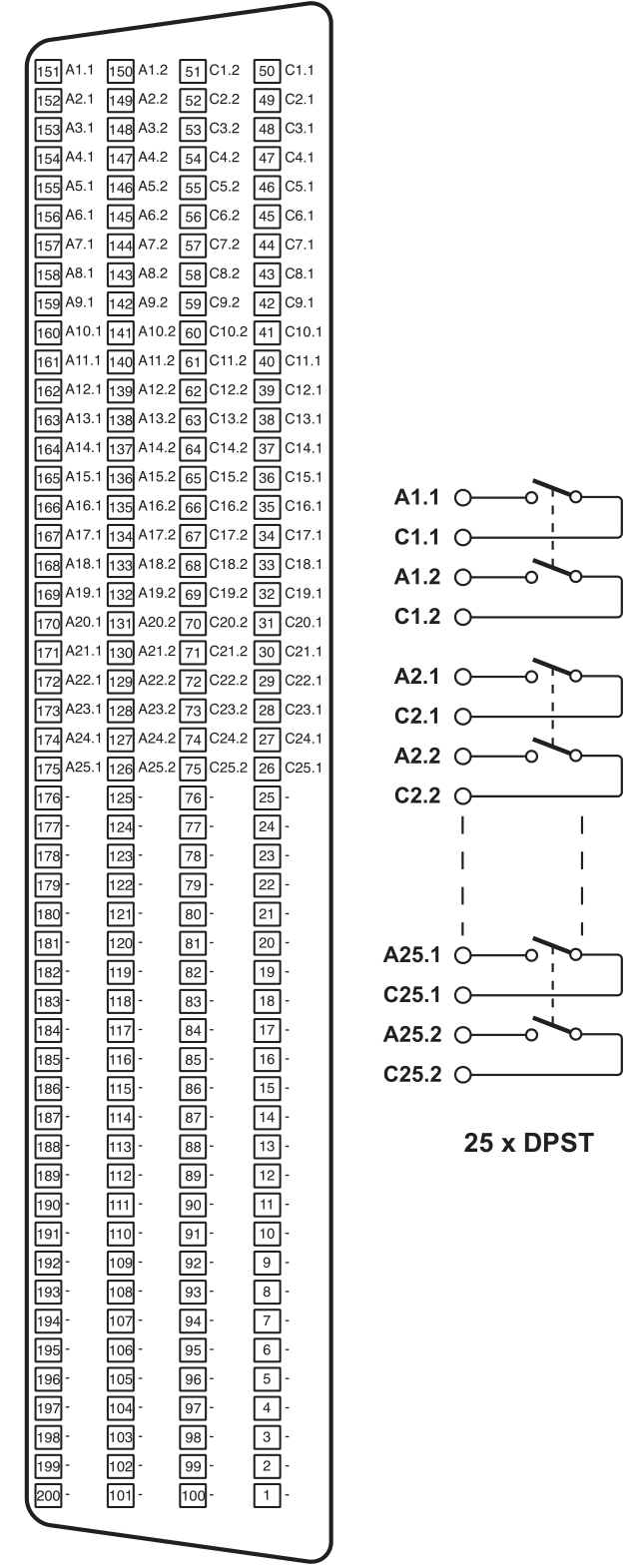

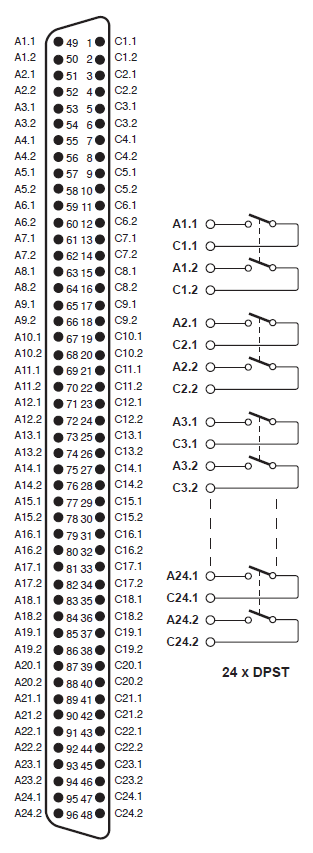

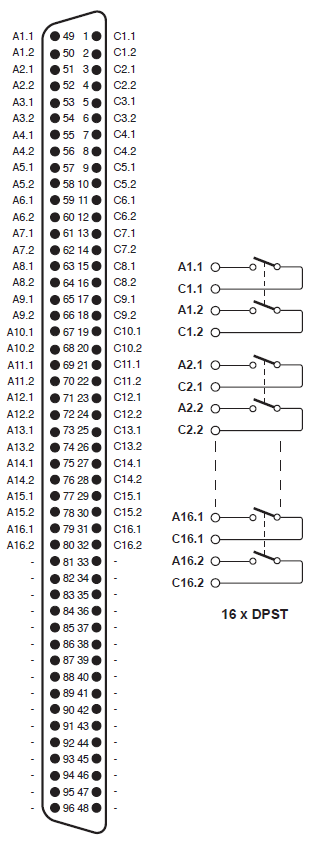

IO941-DPST-25

Reed Relay Module IO941-DPST-25 (25-channel, double pole single throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

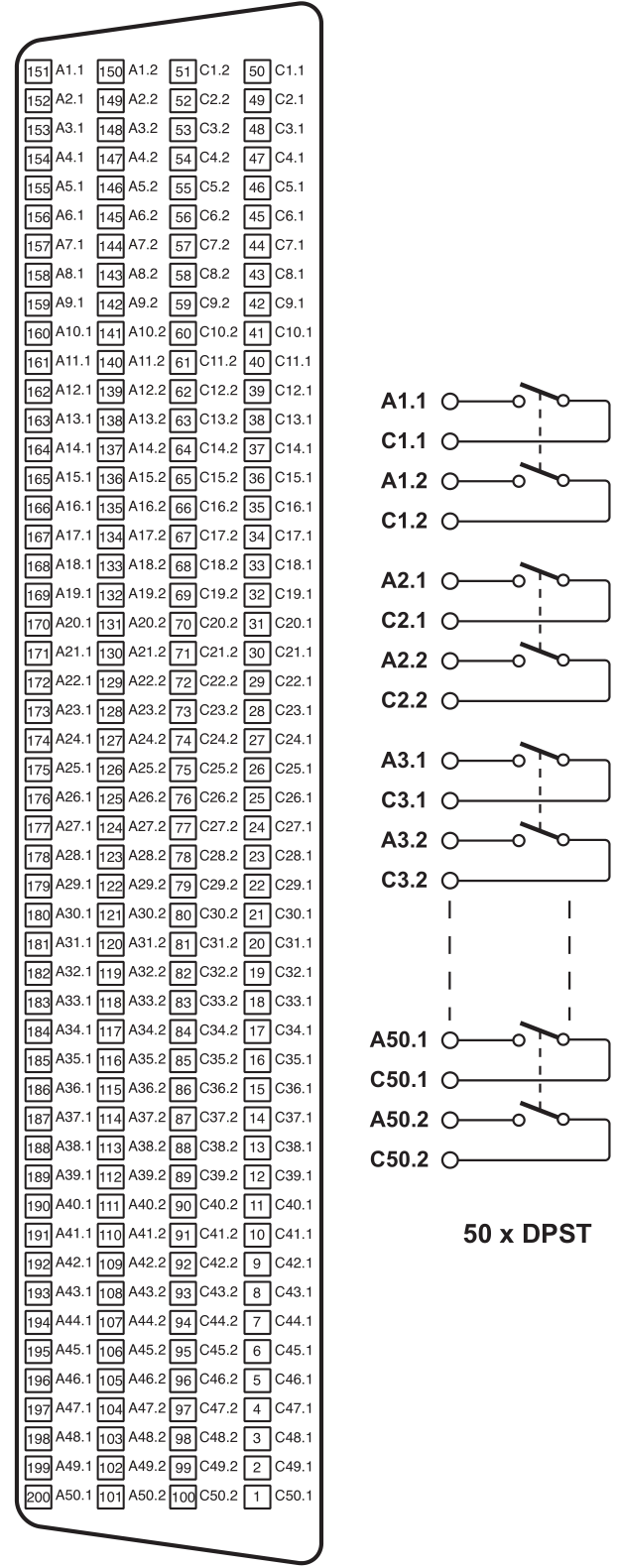

IO941-DPST-50

Reed Relay Module IO941-DPST-50 (50-channel, double pole single throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

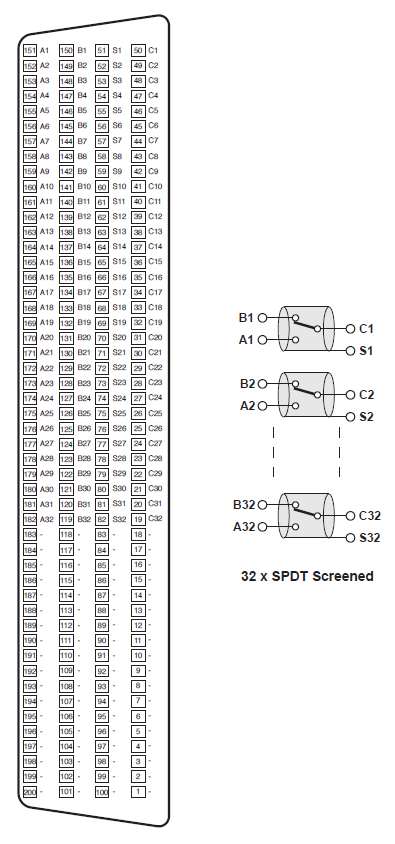

IO941-SPDT-S-32

Reed Relay Module IO941-SPDT-32 (32-channel, single pole double throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

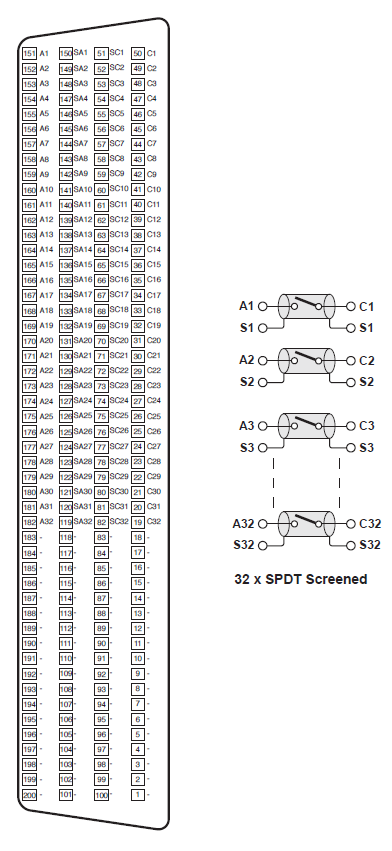

IO941-SPST-S-32

Reed Relay Module IO941-SPST-32 (32-channel, single pole single throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

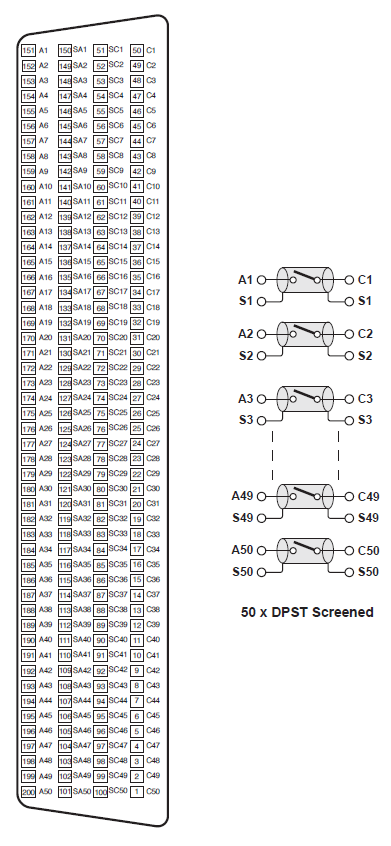

IO941-SPST-S-50

Reed Relay Module IO941-SPST-S-50 (50-channel, single pole single throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.

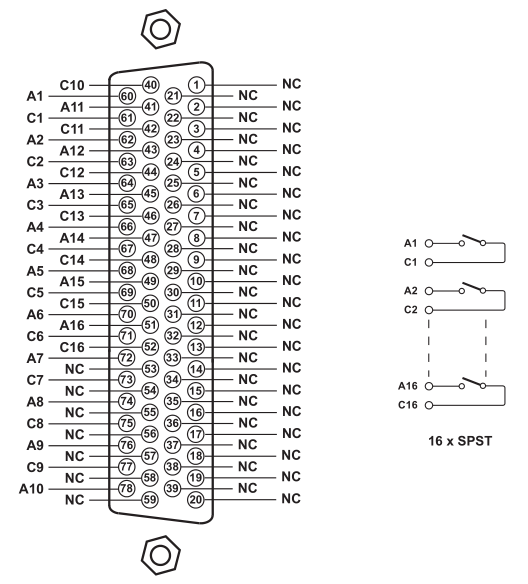

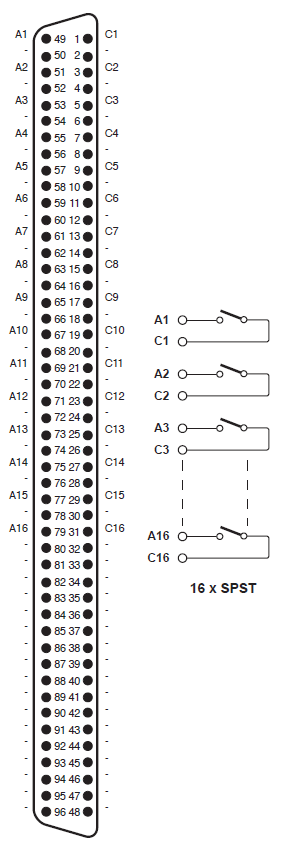

IO941-SPST-16-2

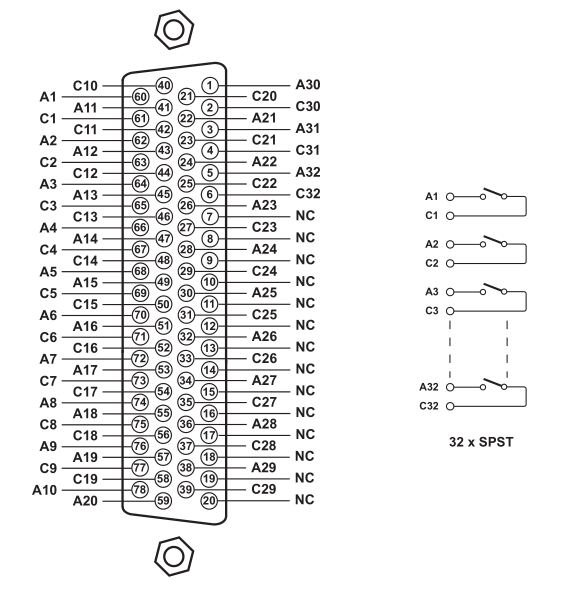

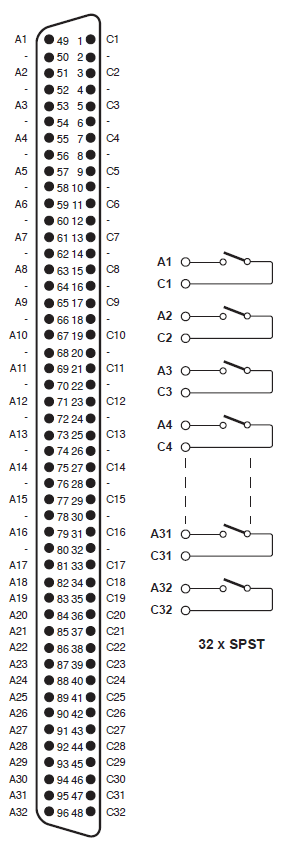

IO941-SPST-32-2

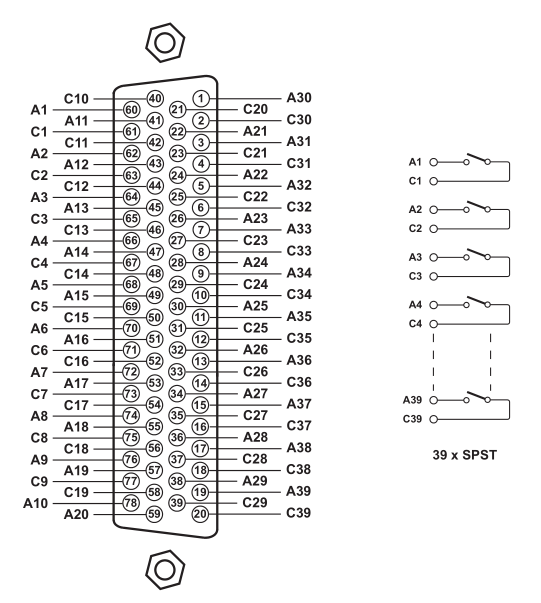

IO941-SPST-39-2

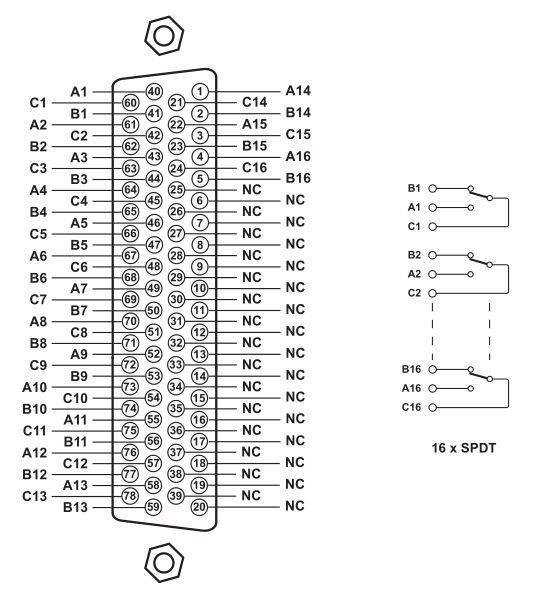

IO941-SPDT-16-2

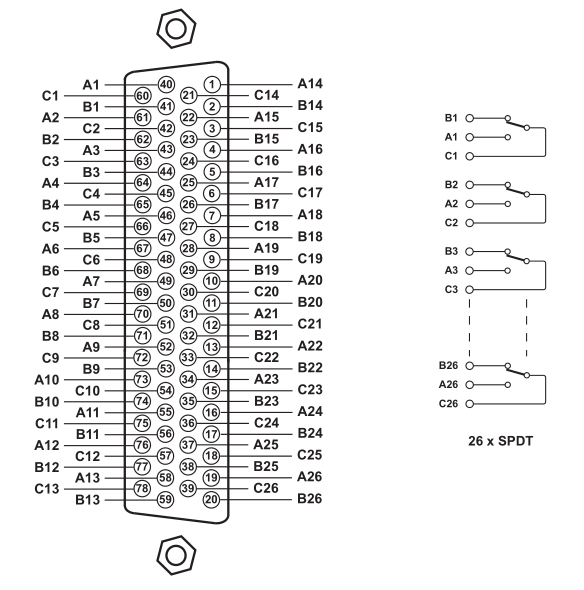

IO941-SPDT-26-2

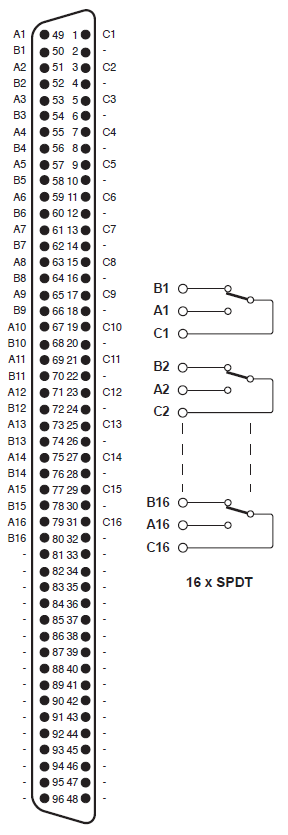

IO942-SPDT-16

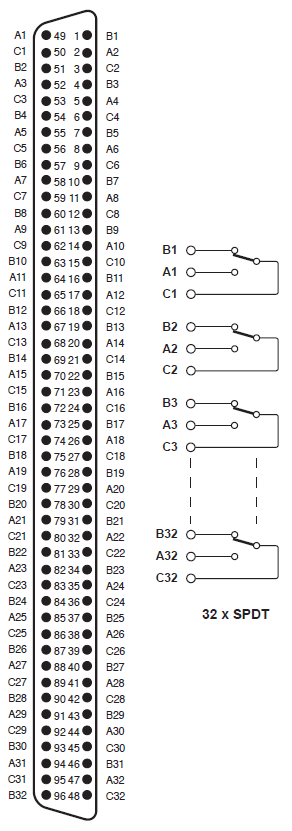

IO942-SPDT-32

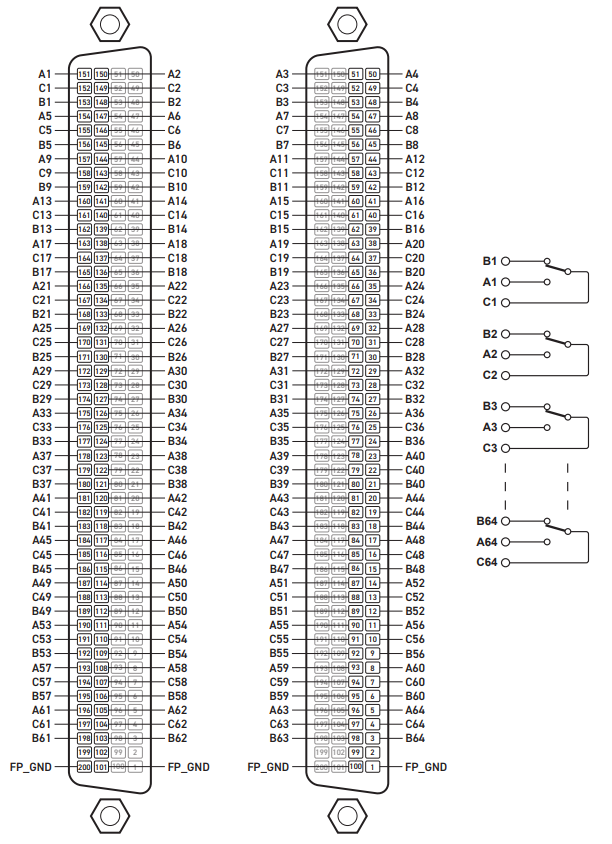

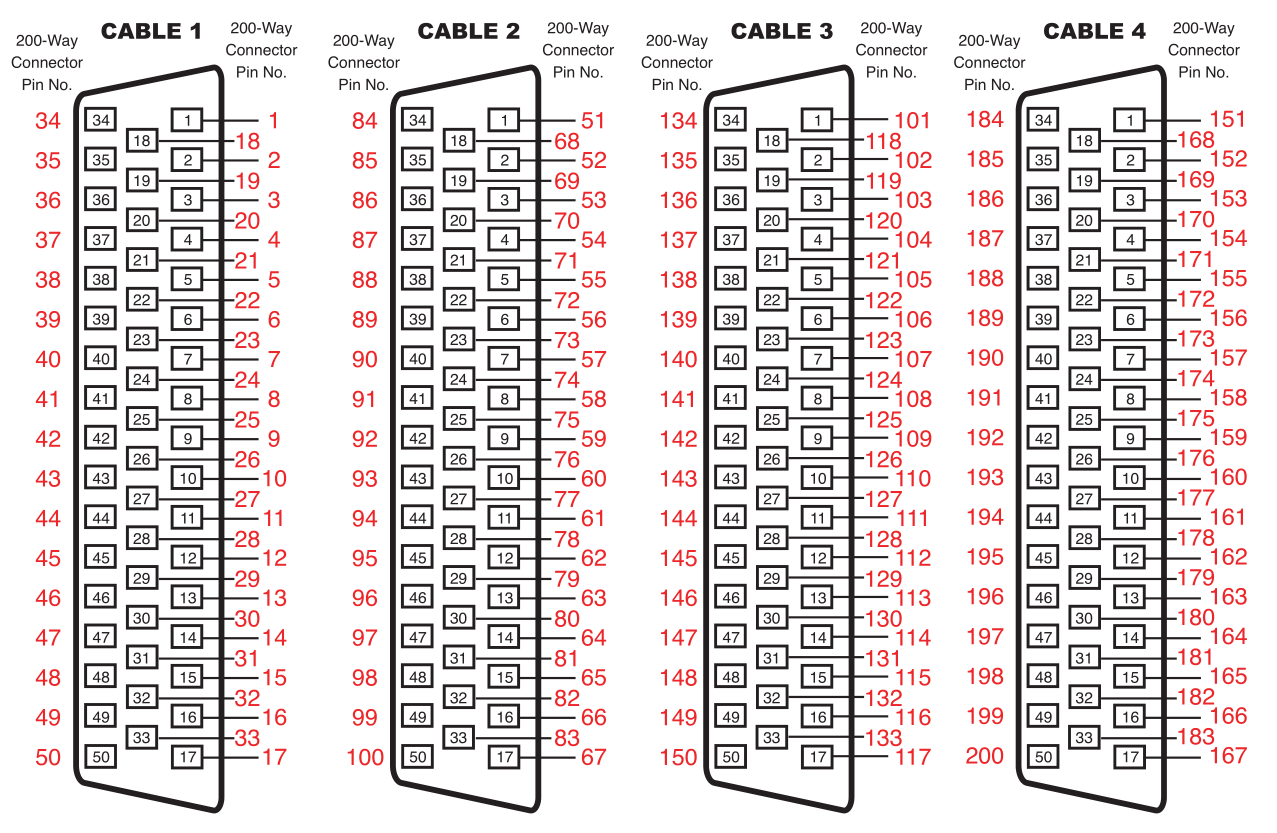

IO942-SPDT-64

Reed Relay Module IO942-SPDT-64 (64-channel, single pole double throw) 200 pin female LFH connector. The schematics on the right show the relays in their default states.
